EVOLUKIT® PERCHES – SEMI-AUTOMATIC HITCHING

PREFACE

Thanks to our location in Burgundy, in the heart of high-density vineyards, we have since the mechanization of these vineyards in the 1950s developed specific tools adapted to straddle tractors for vines planted from 0.90 to 1.50 m.
To enable the implementation of our equipment, we offer different supports:
– EVOLUKIT® mounts or plow shafts
– Frame mounts

Fabrice DULOR
Sales director

EVOLUKIT® PERCHES - SEMI-AUTOMATIC HITCHING

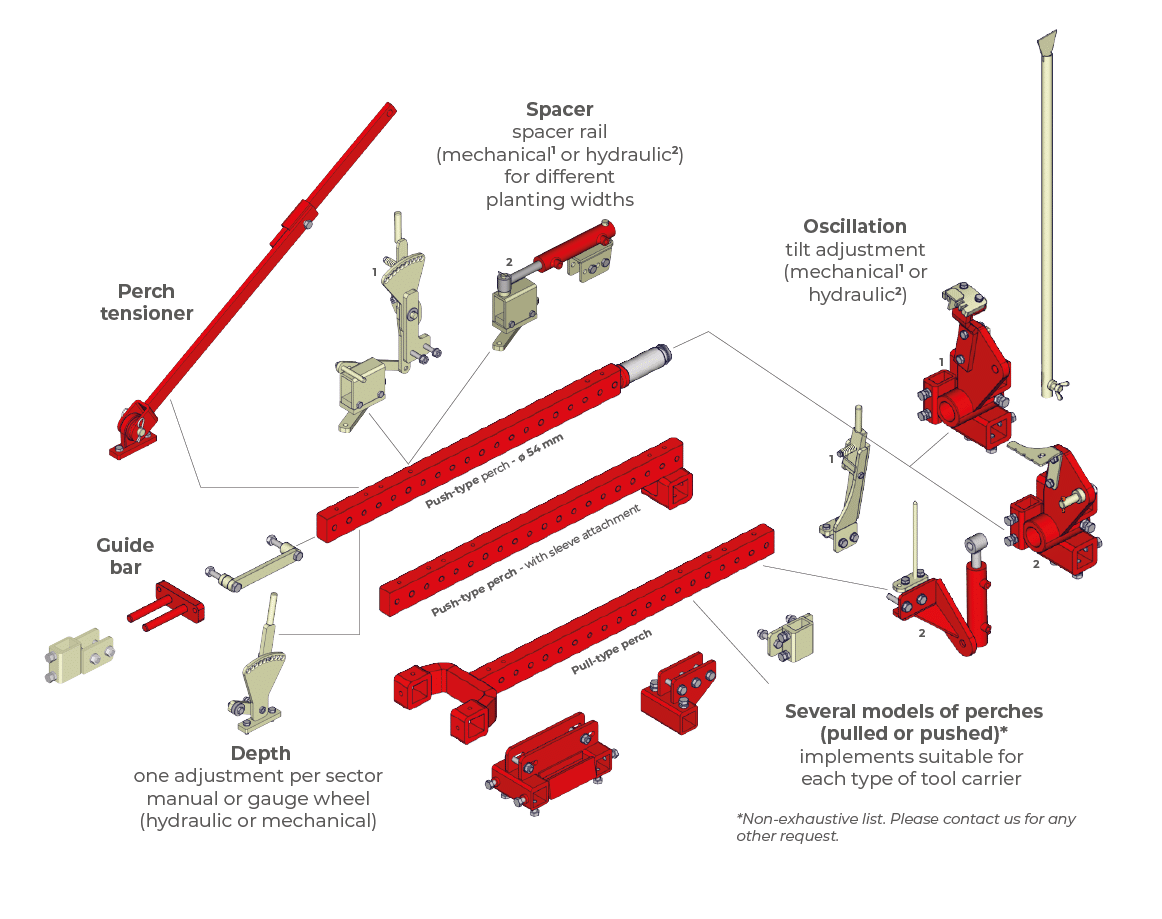

EVOLUKIT® PERCHE Description BOISSELET

Description

Designed by BOISSELET since 1988, the EVOLUKIT® perch can be configured according to your needs and adapted to your tractor. Made of high-strength steel and 100% customizable thanks to a wide range of fastening parts, the EVOLUKIT® perch offers increased versatility and adaptability.

Technical characteristics

PULL-TYPE PERCH

ATTACHMENT : 50 mm sleeve attachment – STANDARD LENGTH* (mm) 650, 900, 1200, 1400

PUSH-TYPE PERCH

50 mm sleeve attachment / 54 mm shaft – STANDARD LENGTH* (mm) 900, 1000, 1200, 1400



*Other lengths available on request.

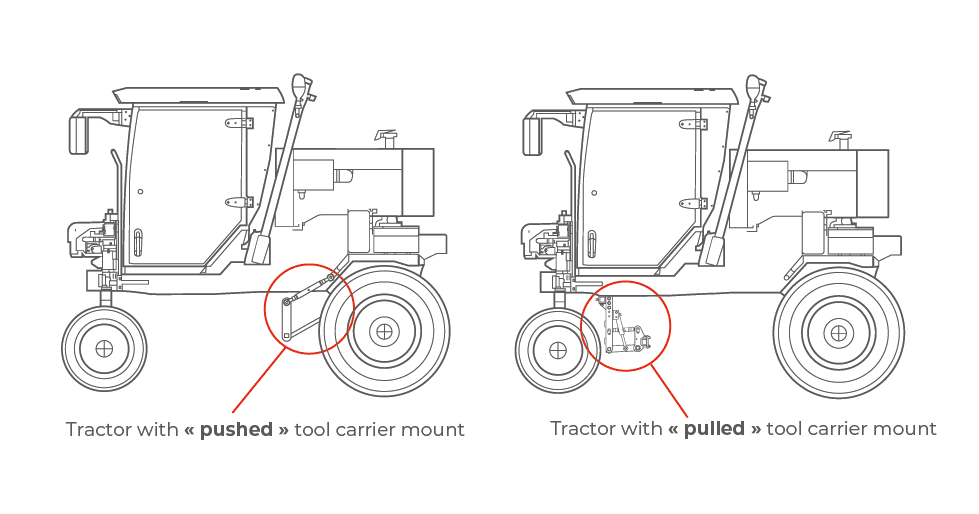

USING THE EQUIPMENT

Our equipment is designed for all of the operations carried out within the vineyard’s cultivation cycle.
To deal with the implementation of equipment, we ensure that straddle tractors are equipped with tool holders between the wheels, using either a pushed or pulled design, and using either hitch or quick fasteners.

Implementing equipment on a pushed or pulled tool holder (P.O.)

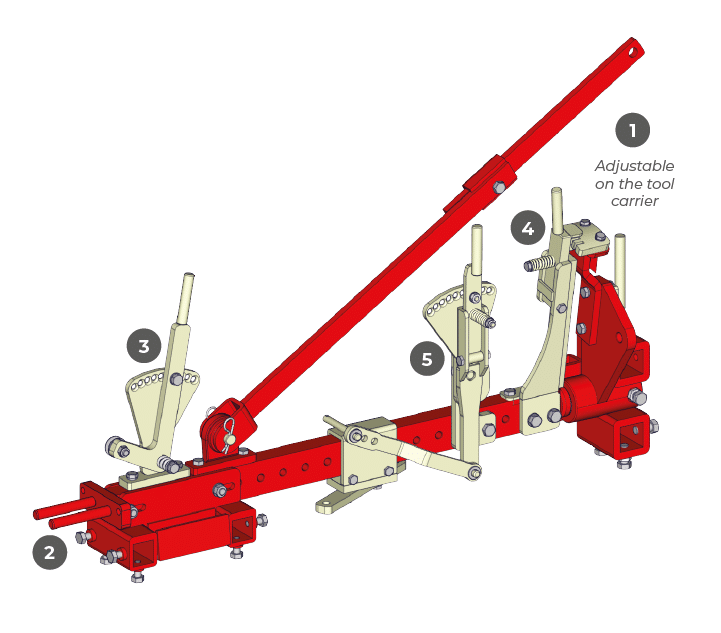

evolukit® ADJUSTMENT FEATURES

Numbered diagram of EVOLUKIT® pole adjustments with legend

Adjustment features

1 : GROUND-CONTACT horizontal orientation

2 : GUIDANCE Lateral shaft mount

3 : DEPTH Tool leveling

4 : TILT adaptable to every type of terrain

5 : SPACING ajustable to any variation in row spacing

SEMI-AUTOMATIC COUPLING OPTION

Designed by BOISSELET since 2014, the semi-automatic hitch allows easy attachment of perch to straddle tractor tool carriers, whether they are in a pushed or pulled position.
The semi-automatic hitch is composed of a rear post (fixed or swinging) bolted to the tool carrier of the straddle tractor and a specific EVOLUKIT® implement

3D visual of a rear post "shot with a 50 x 50 mm gogue

Pulled-type rear post 50 x 50 mm sleeve attachment

3D visual of a “pushed” rear post with a 50 x 50 mm gogue

Push-type rear post
50 x 50 mm sleeve attchment



3D visual of a “pushed” oscillating rear post with a 50 x 50 mm gogue

Oscillating push-type rear post 50 x 50 mm sleeve attachment

3D visual of a “pushed” oscillating rear post with a 50 x 50 mm gogue

Oscillating push-type
hydraulic Rear post
“pushed” 50 x 50 mm gogue

PUSHED POSITION CONFIGURATION

Explanatory diagram for semi-automatic hitch installation on pushed P.O or pulled P.O configuration

PULLED POSITION CONFIGURATION

Explanatory diagram for semi-automatic hitch installation on pushed P.O or pulled P.O configuration

Description

Rear post + EVOLUKIT® implement as independent elements

3D visual of semi-automatic hitch configuration P.O pushed locked
3D visual of semi-automatic hitch configuration P.O pulled locked

Description

Rear post + EVOLUKIT® implement connect view

Did you know ?

Available as an option, the semi-automatic coupling system, combined with a utility trolly or unloading cart, facilitates the use of equipment and allows quick and effortless hitting and unhitching.

The semi-automatic hitch combined with a removal trolley facilitates the implementation of the equipment.

EXAMPLES OF PLOW COMBINATIONS

• RIDGING EQUIPMENT (for plantations up to 1.30m)

Composed of a pair of adjustable helical ridgers and blades, the ridging equipment is used to protect the plants from frost. Malleable soil is thus generated to enable plow-back.

Hilling equipment consisting of a pair of helical ridgers
Hilling equipment consisting of a pair of helical ridgers

• RIDGING EQUIPMENT (for plantations up to 1.30m)

Composed of a pair of adjustable helical ridgers and blades, the ridging equipment is used to protect the plants from frost. Malleable soil is thus generated to enable plow-back.

Decavating equipment consisting of a pair of VLG 270 decavating machines

• RIDGE REMOVAL EQUIPMENT (for plantations up to 1.30m)

Composed of a pair of VLG 270 plow-back moldboards and traction springs, it enables ridge removal as close as possible to the plant as well as burying of established weeds.

Decavating equipment consisting of a pair of VLG 270 decavating machines

• RIDGE REMOVAL EQUIPMENT (for plantations up to 1.30m)

Composed of a pair of VLG 270 plow-back moldboards and traction springs, it enables ridge removal as close as possible to the plant as well as burying of established weeds.

• TILLING EQUIPMENT (for plantations up to 1.30m)

Composed of 5 legs equipped with tines, this tillage system enables light decompaction and the elimination of medium-sized weeds and vegetation.

Clawing equipment composed of 5 stanchions equipped with claws
Clawing equipment composed of 5 stanchions equipped with claws

• TILLING EQUIPMENT (for plantations up to 1.30m)

Composed of 5 legs equipped with tines, this tillage system enables light decompaction and the elimination of medium-sized weeds and vegetation.

Plow hoeing equipment composed of 3 stanchions equipped with hearts of 200 mm & 300 mm

• PUSHED PLOW HOEING EQUIPMENT (for plantations up to 1.30m)

Composed of 3 legs equipped with 200 mm & 300 mm heart-shaped shares and two swan-neck legs equipped with 300 mm plant hoes, this hoeing setup enables light weeding of the inter-vine row. It gets as close as possible to the plants thanks to the traction springs.

Plow hoeing equipment composed of 3 stanchions equipped with hearts of 200 mm & 300 mm

• PUSHED PLOW HOEING EQUIPMENT (for plantations up to 1.30m)

Composed of 3 legs equipped with 200 mm & 300 mm heart-shaped shares and two swan-neck legs equipped with 300 mm plant hoes, this hoeing setup enables light weeding of the inter-vine row. It gets as close as possible to the plants thanks to the traction springs.

• PUSHED PLOW HOEING EQUIPMENT WITH HEART-SHAPED SHARES(for plantations up to 1.30m)

Comprising 5 legs equipped with 200 mm heart-shaped shares, this hoeing equipment is for weeding inter-vine rows. The spacing rods ensure lateral rigidity of the plow.

Hoeing equipment in hearts pushed plow composed of 5 stanchions in hearts of 200 mm
Hoeing equipment in hearts pushed plow composed of 5 stanchions in hearts of 200 mm

• PUSHED PLOW HOEING EQUIPMENT WITH HEART-SHAPED SHARES(for plantations up to 1.30m)

Comprising 5 legs equipped with 200 mm heart-shaped shares, this hoeing equipment is for weeding inter-vine rows. The spacing rods ensure lateral rigidity of the plow.

Frame plow equipment designed for vines from 1.30 to 1.50 m

• FRAME-TYPE PLOWING EQUIPMENT
(for plantations from 1.30 to 1.50m)

Designed for vineyard rows from 1.30 to 1.50 meters in width, frame-type plow equipment offers a comprehensive approach to all soil work throughout the seasons. The spacing can be mechanical or hydraulic and tools are attached by bolt-on clamps.

Frame plow equipment designed for vines from 1.30 to 1.50 m

• FRAME-TYPE PLOWING EQUIPMENT
(for plantations from 1.30 to 1.50m)

Designed for vineyard rows from 1.30 to 1.50 meters in width, frame-type plow equipment offers a comprehensive approach to all soil work throughout the seasons. The spacing can be mechanical or hydraulic and tools are attached by bolt-on clamps.

Did you know that ?

Available in option, the utility trolley facilitates the handling of plows as well as their installation on the tool carriers of high-clearance tractors.

The removal trolley facilitates the handling of plows as well as their installation

VIDEOS

PHOTOS

EVOLUKIT® perch

Semi-automatic hitch

Semi-automatic hitch

Presentation of BOISSELET EVOLUKIT® PERCH*

*Non-exhaustive list, for a specific request, Contact us
