MECHANICAL INTER-VINE TOOL

VINTAGE KIT (LEFT-SIDE & RIGHT-SIDE EQUIPMENT)

PREFACE

“The VINTAGE KIT is based on the plow-back devices invented and manufactured by BOISSELET since 1969.
Now modernized and equipped with several tools: ridge removal, hoeing, decompacting.

It enables quick cultivation techniques in suitably prepared vineyards by adapting to low-powered tractors.”

Fabrice DULOR
Sales Director

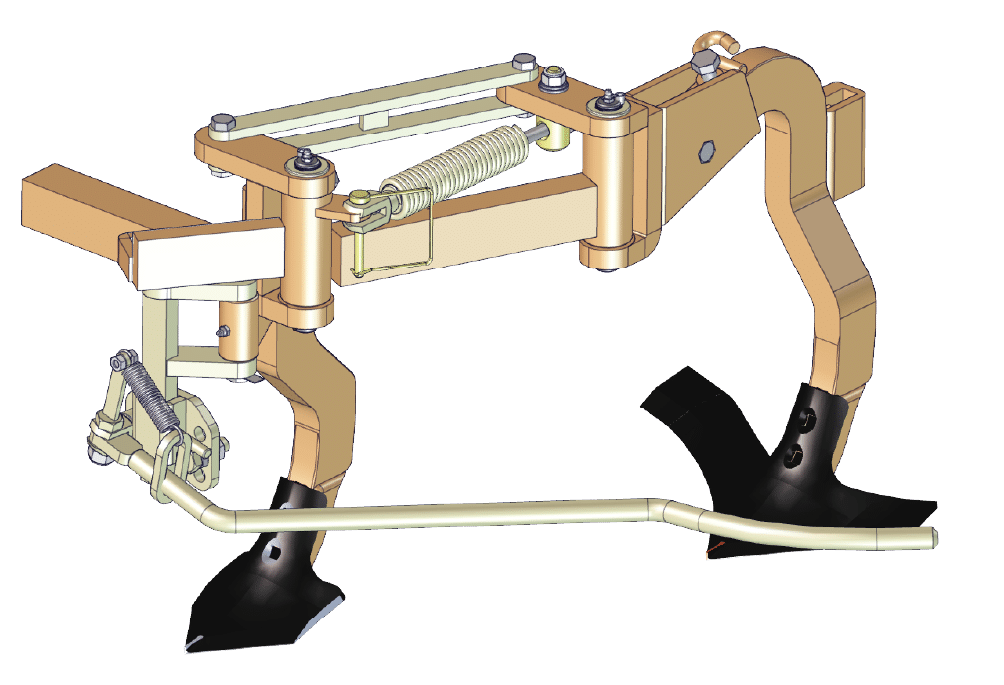

one left side

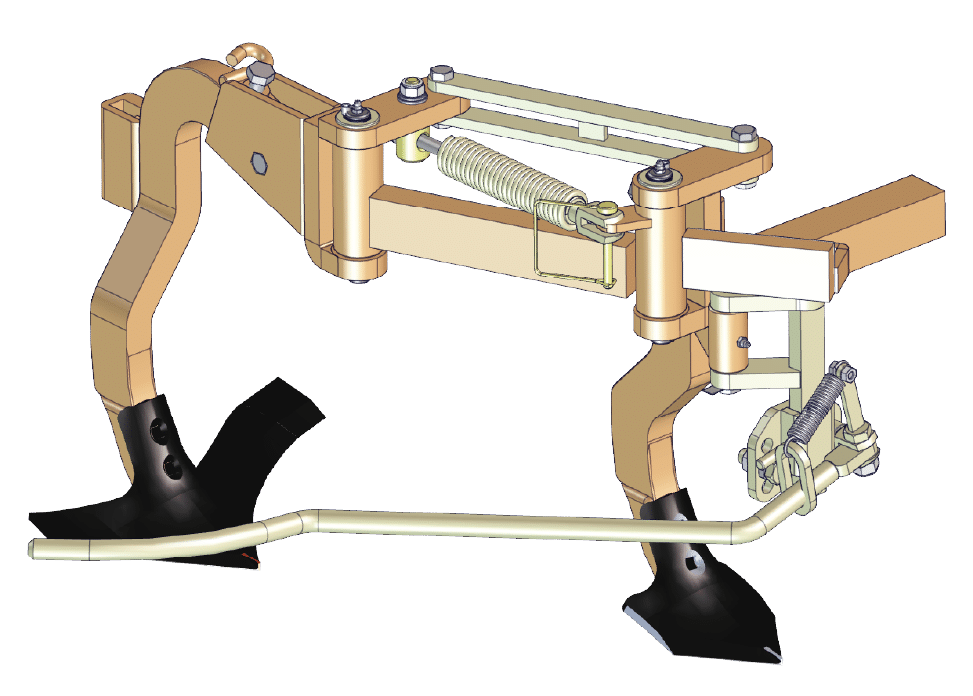

3D Right side vintage pack

one right side

ADVANTAGES

VINTAGE KIT

• Consists of a pair of parallelograms and tools for hoeing

• Can be adapted to all machines equipped with tool holders

• No hydraulic power is required

• Works with a traction spring

• 100% mechanical

INCLUDED WITH
THE VINTAGE KIT

• 2 mechanical parallelograms with sensor
(left and right)

• 2 legs equipped with ‘goose-foot’ shares
(left and right)

• 2 hoeing tools (left and right)

The various options

3D light debut option vintage pack

LIGHT RIDGE REMOVAL

VINTAGE KIT

OPTION

Left and right curved legs
• 70° angle
• 120 mm offset
• Plow-back share with adjustable orientation by means of a notched nut

Intervine option behind decavator "small model"

INTER-VINE VINTAGE KIT OPTION

Behind the plow-back implement « small model »

3D Disc Option Vintage Pack

DISK OPTION VINTAGE KIT
Notched discs left and right

– Diameter 350 mm
– Upright 50 x 30 mm
– Tiltable and pivotable
– Mounting of shaft at 70° angle
with 50 x 30 mm
– Specific sensors

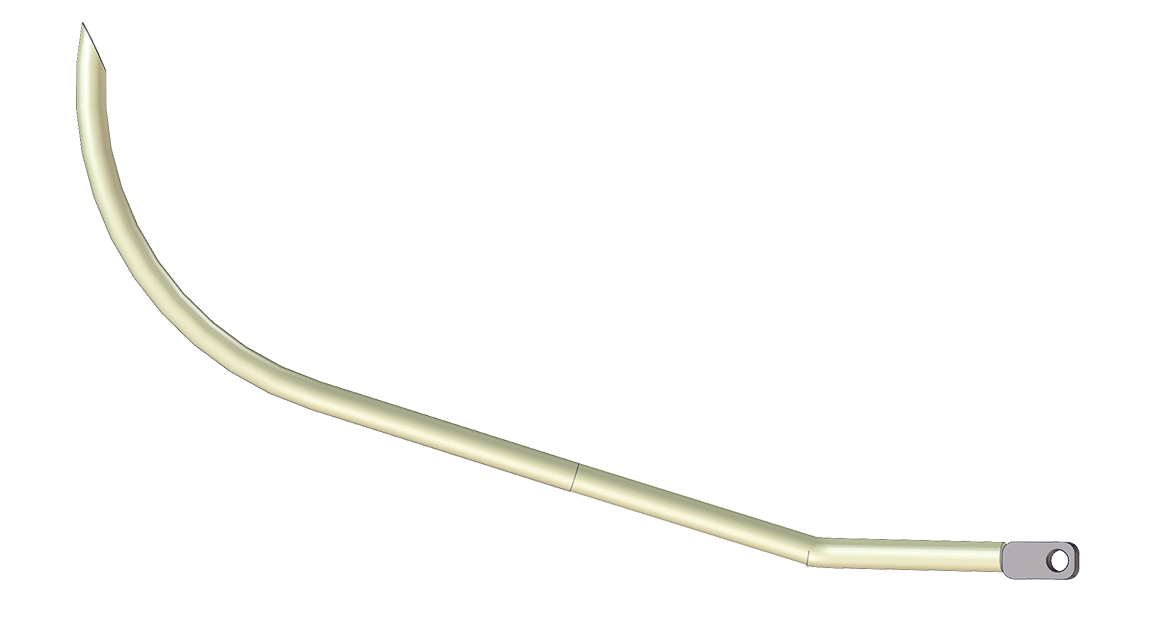

*Specific antenna vintage disc pack option

assembly example

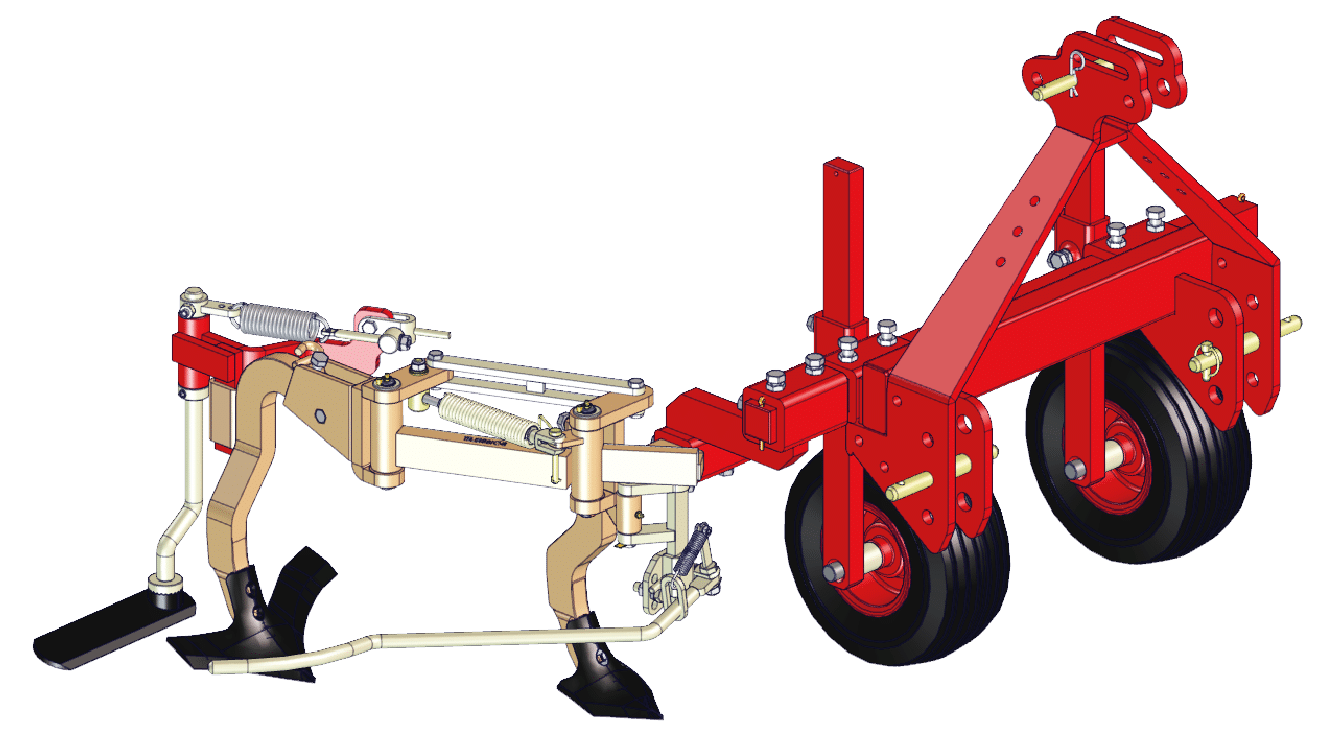

Vintage KIT mounting on 3-point rack

VINTAGE KIT on 3 point frame

DIMENSIONS

VINTAGE Pack dimensions diagram with movement area and seen from above

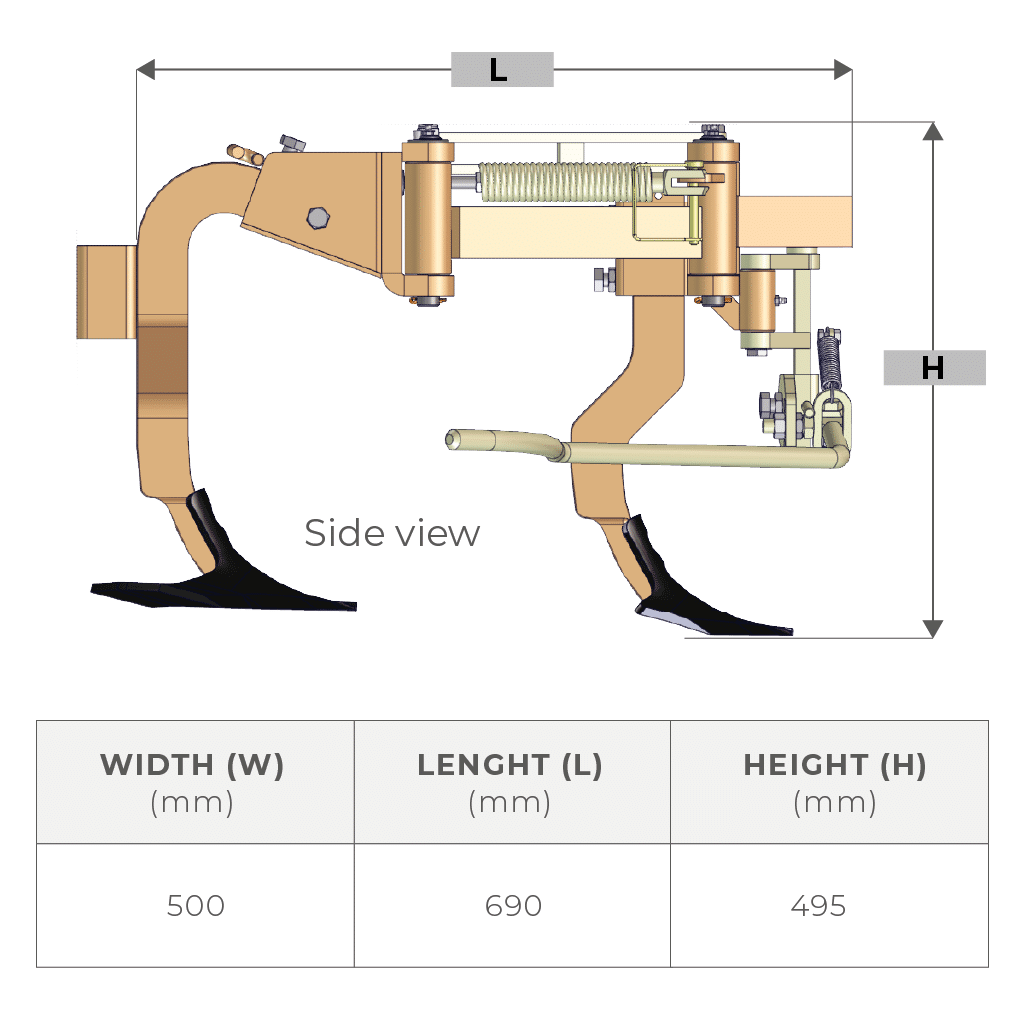

Dimensions diagram VINTAGE Pack height profile view
