TILLING AND HOEING

PREFACE

In our forge workshop, blacksmiths have created a whole range of tilling and hoeing “plowshares”, as well as “legs” (plowshare supports) of various models (height, offset), whose quality speaks for itself. This allows for a wide range of assemblies and situations.

These different models make it possible to take into account the spacing between rows, the age and size of the plants, the different soil structures–whatever the setting or conditions.

3D parallelogram fixed position relative to the planting row (with connecting rod)

• FIXED POSITION
in relation to the planting row with a connecting (with linkage)

3D parallelogram parallel movement relative to the planting row (with tension spring and chain)

• PARALLEL MOTION
in relation to the planting row with traction spring (with tension spring and chain)

3D parallelogram rotating movement around the plant (with compression spring and connecting rod)

• ROTARY MOVEMENT
ROTATIF

around the plant with compression spring and connecting rod (with compression spring and linkage)

Technical characteristics

For the use of a plowshare in a mobile position, the legs are often equipped with asymmetric plowshares fixed on supple structures called parallelograms.

Depending on the assembly of the associated spring (tension or compression spring) the adapted plowshare can have different movements:

PARALLELOGRAMS

3D parallélogramme à gogue

SLEEVE ATTACHMENT MODEL
• Connection
45 x 45 mm
• Front attachment
50 x 30 mm
• Rear box
50 x 30 mm at 70°

3D parallélogramme vigne large

WIDE INTER-ROW MODEL
• Post mounted
50 x 30 mm
• With or without front
sleeve attachment
50 x 30 mm
• Rear box
50 x 30 mm à 70°

3D parallélogramme à carré

SQUARE MODEL
• Arm attachment
45 x 45 mm
• Front sleeve attachment
50 x 30 mm
• Rear box
50 x 30 mm at 90°

Technical characteristics

They are delivered as standard with a 300 mm distance connecting rod and without spring.

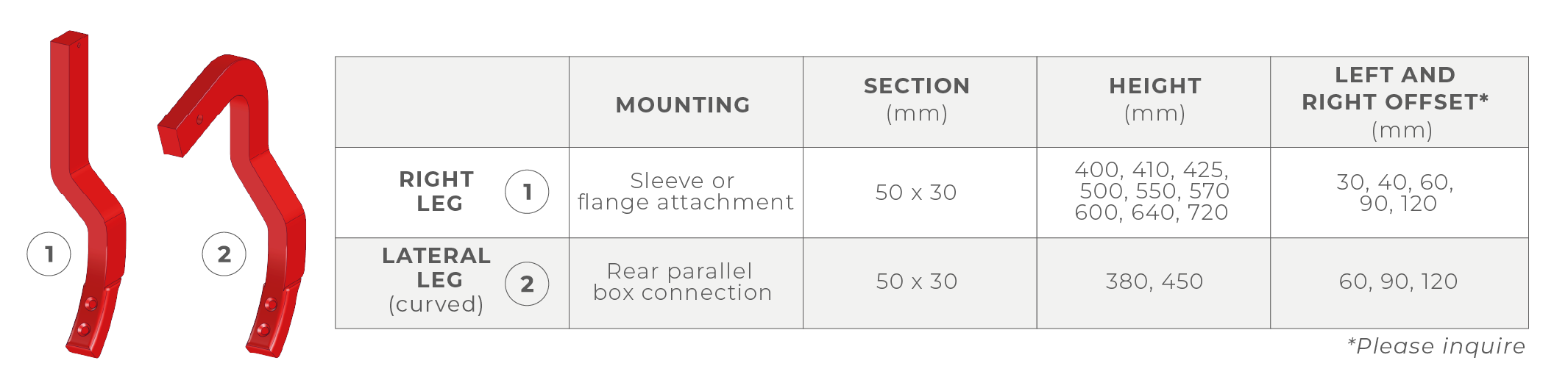

Legs

Descriptions of the props, straight, angled lateral

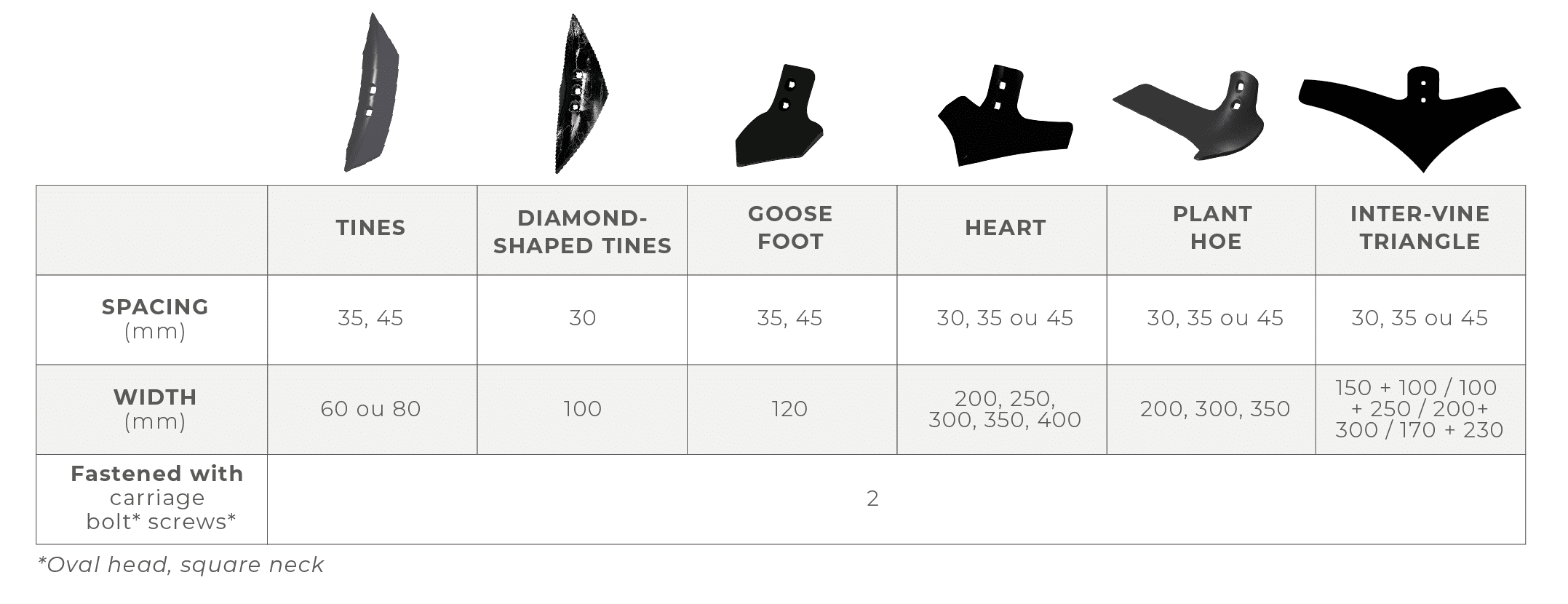

Plowshares

Description of the different types of BOISSELET plowshares

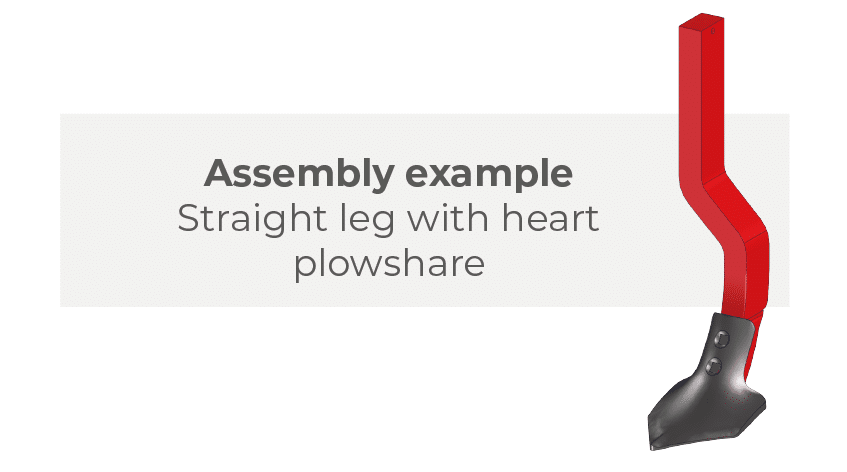

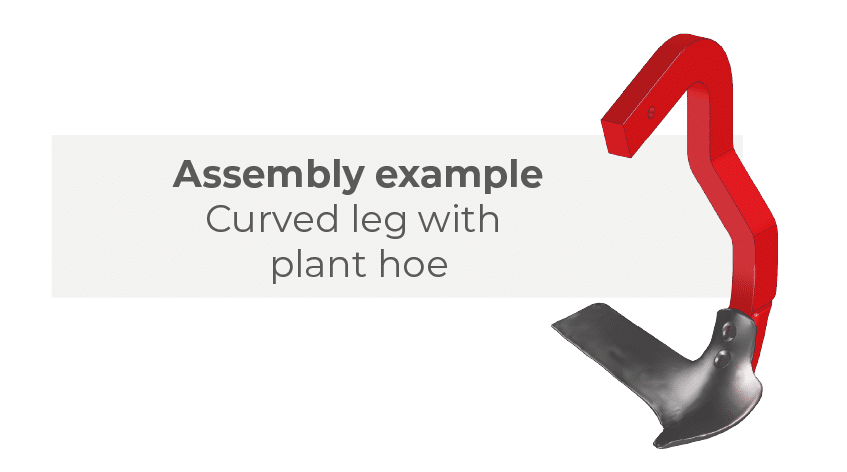

Example of mounting straight & angled lateral props

PHOTOS

Triangle interceps

Intervine triangle at the forge
