RIDGE REMOVAL PLOWSHARES – PLOW-BACK ATTACHMENTS

PREFACE

When the crops have been mechanically ridged (with a moldboard tool) or naturally ridged (repeated passages of machinery), it is necessary to undertake a delicate operation: plow-back, or ridge removal or un-earthing.
For this operation it is necessary to use a special sloping implement which makes it possible to work the planting strip known as the “cavaillon” in French.

Maxime RAYMOND
Sales rep – Southwest Sector

Configuration of a mechanical ridge remover with sensor

Composition of a mechanical feeler decavator and its different parts making it up

Informations

A plow-back attachment consists of a gooseneck, a plow-back share and a moldboard.

PLOW-BACK ATTACHMENTS DK COMPACT

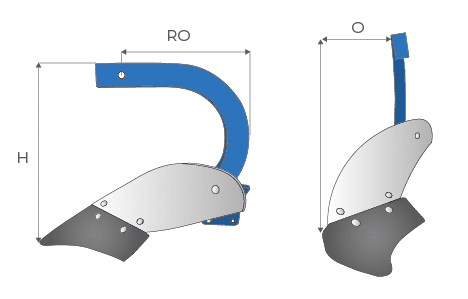

The different measurements of a decavator machine (height, offset, rear)

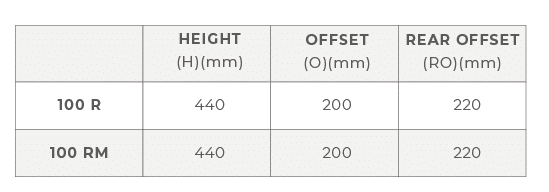

Technical information technology on the Ridge removal

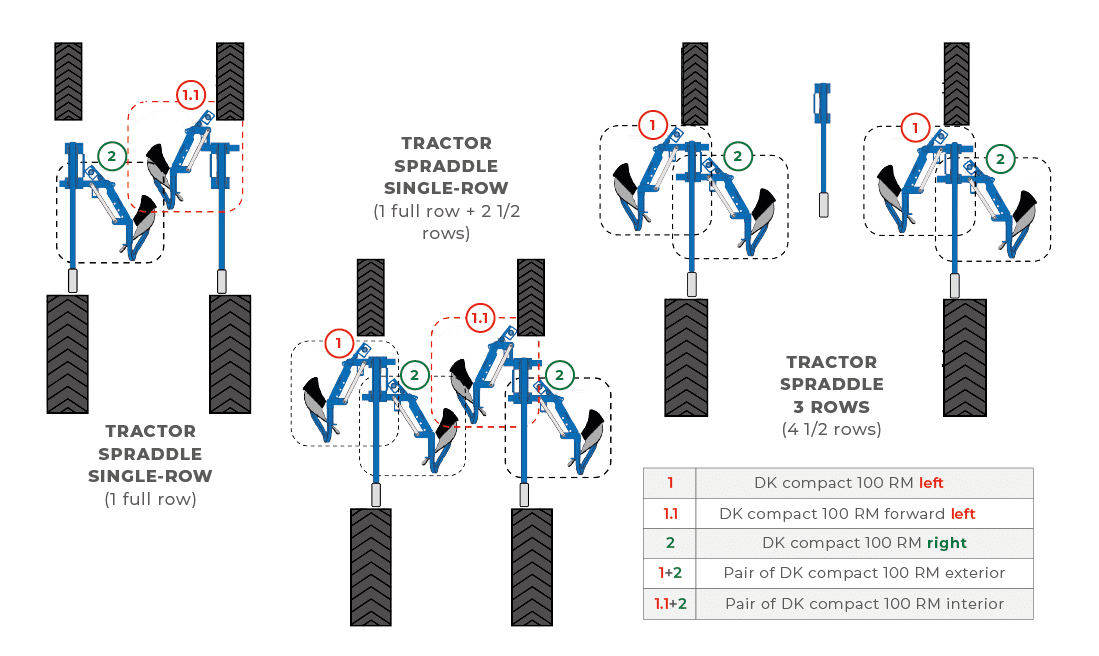

EXAMPLES OF DK COMPACT BETWEEN-WHEEL MOUNTING

Exemple de montage entre-roues DK COMPACT
Adjustment diagram for decavator on straddle tractor

PLOWSHARES settings

Settings

1 : POSITION THE TRACTOR ON LEVEL GROUND

2 : PLACE THE TOOL ON THE GROUND

3 : CHECK THAT THE SHARE IS EVENLY POSITIONED ON THE GROUND

4 : MAKE A SLIGHT PITCH ADJUSTMENT AT GROUND-CONTACT
To avoid smoothing the soil (plow pan).

COMPOSITION OF A MECHANICAL RIDGE REMOVER DK VL

COMPOSITION OF A MECHANICAL RIDGE REMOVER DK VL BOISSELET

PLOW-BACK ATTACHMENTS DK VL

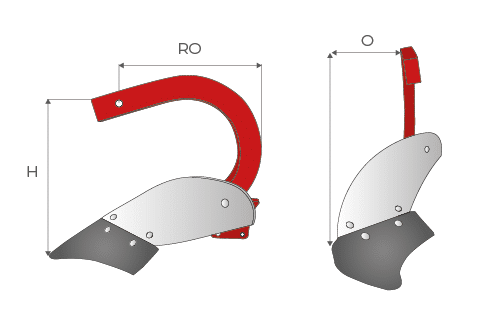

The different measurements of a decavator age (height, offset, rear)

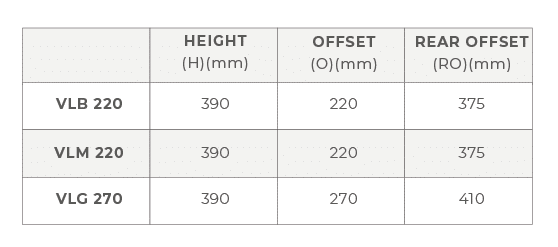

Technical information on Plow-back attachments DK VL

*DIFFERENT TYPES OF MOLDBOARDS

The different types of moldboards

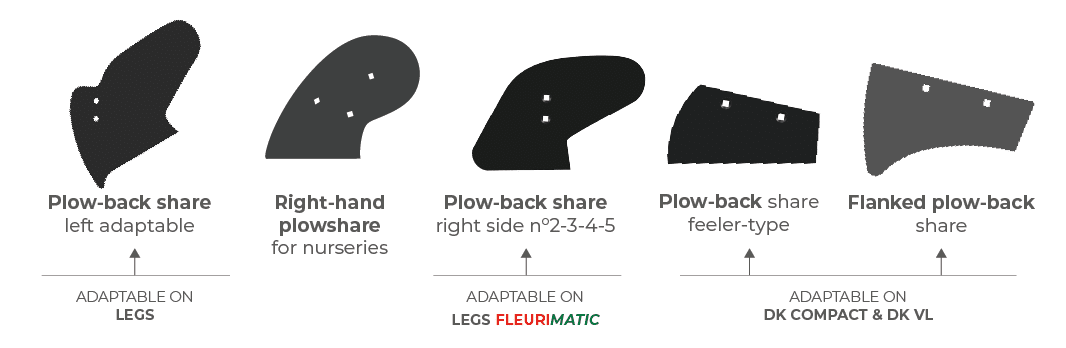

COMMON PLOWSHARE MODELS

Common plowshare models
Le saviez-vous ?
3D of an independent right offset interceptor with two types of springs

1 : independent inter-vine with right offset*
* spring Ø 6 mm (standard) or Ø 6,5 mm

3D of an intervine to be bolted to a straight line

2 : inter-vine bolt attachment for right
