INTER-VINE MOWERS

MINI MOWER TONDO

PREFACE

Inter-vine mowing heads can be mounted on frames or as a complement to existing inter-vine shredders. They allow easy maintenance of the plantation strip in viticulture, arboriculture, under fences and safety rail trimming. All blade mowers are designed with an enclosed protective casing to minimize projections. The mowing heads can be used with a mechanical or hydraulic retraction system.

3D Porte-lames pourvu de 2 lames-folle (pour mini tondeuse Ø 400 mm)

Blade holder with 2 flail blades
(for mini mower Ø 400 mm)

3D porte-lames pourvu de 6 couteaux (pour tondo broyeuse Ø 600 mm & Ø 800 mm)

Blade holder with 6 blades (for tondo shredder
Ø 600 mm &
Ø 800 mm)

Conception

Different diameters are available depending on their use :

3D mini tondeuse Ø 400 avec moteur déporté (MD) ou moteur centré (MC)
3D mini-mower Ø 400

MINI TONDEUSE Ø 400 mm, with centered motor (MC) or offset motor (MD). It is equipped with a hydraulic motor directly (MC) or indirectly (MD) driving a blade holder with 2 cutters.

3D tondo broyeuse Ø 600 mm avec moteur centré (MC)

TONDO Ø 600 mm, with centered motor (MC). It is equipped with a centered hydraulic motor driving a blade holder equipped with 6 knives.

3D tondo broyeuse Ø 800 avec loteur centré (MC) ou moteur déporté (MD)

TONDO Ø 800 mm, with centered motor (MC) or offset motor (MD). Both models are equipped with a hydraulic motor driving a blade holder with 6 cutters.

Système d'effacement mécanique ou hydraulique

The MD mower range :

• Belt transmission
• Offset motor for reduced space under the row
• Sustained rotation speed
• Superior mowing quality

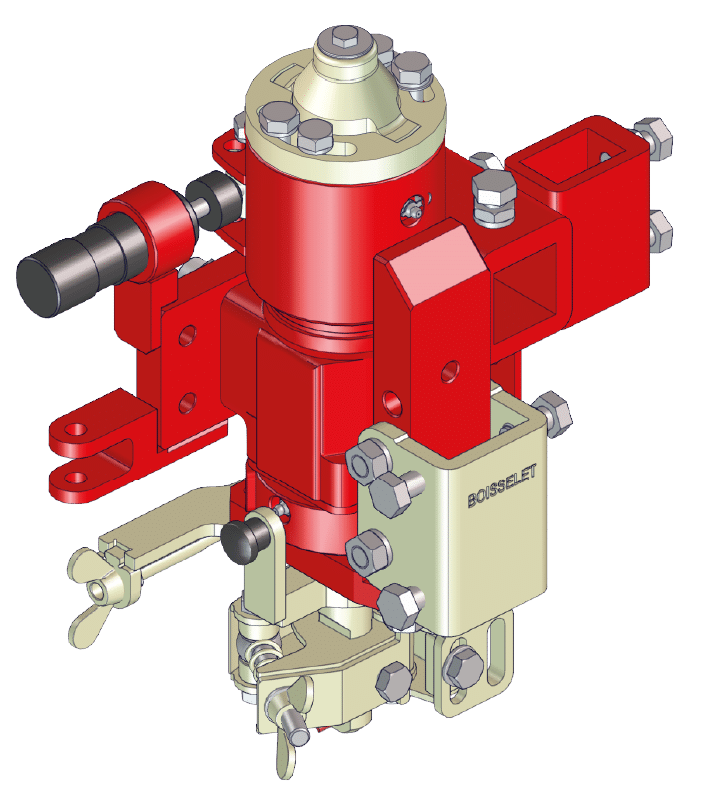

3D effacement hydraulique avec servomoteur EVO4

hydraulic retraction EVO4

3D système d'effacement mécanique de tondeuse

Mechanical retraction

Photo de tondeuse MD sur tracteur enjambeur avec effacement mécanique

Retraction systems / mountings

Mechanical

Mechanical

Mounted on Servomotor

Mounted on Servomotor

Floating on servomotor

Floating on servomotor

Option : Gas shock absorber on servomotor

Option : Gas shock absorber on servomotor

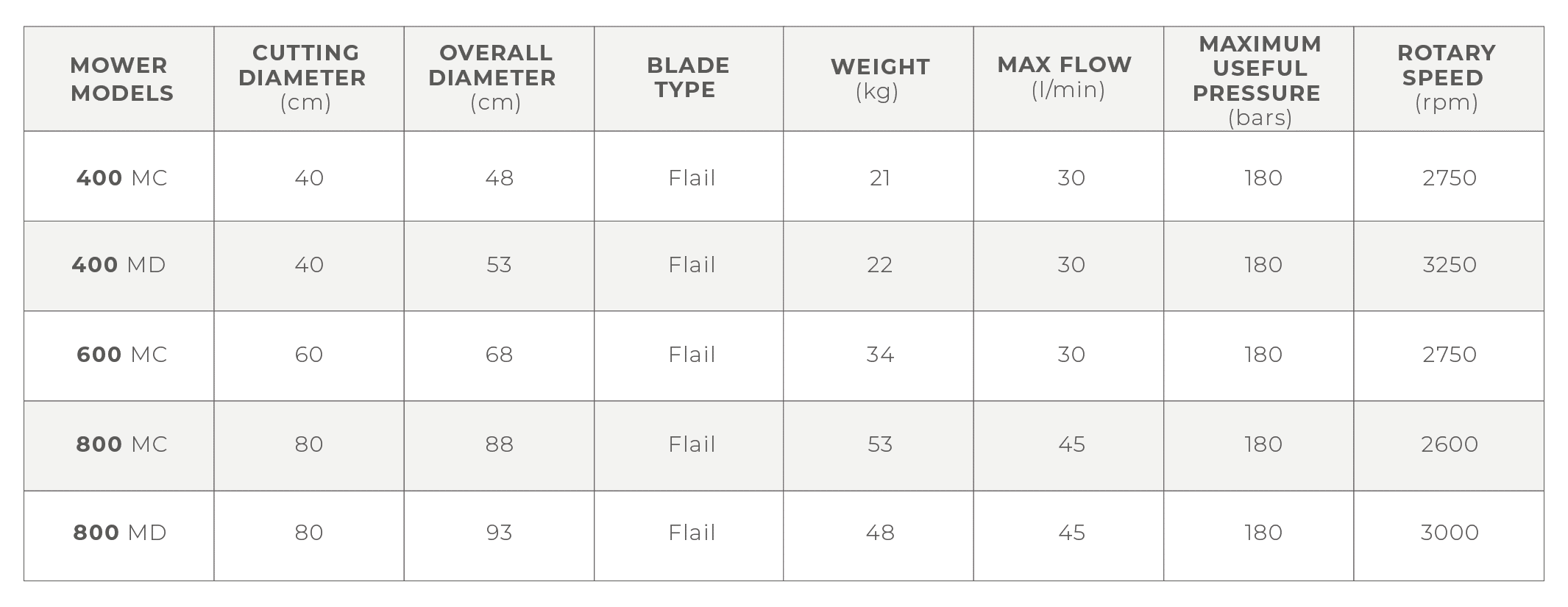

Descriptions of the different mower models (diameters, weight, maximum flow rate, maximum useful pressure, rotation speed)
