PARALLELOGRAM AUGERS – TAP-F

TAP-F

300 MM SPIRAL OPTION

Compact column option with a 300 mm diameter screw enables
working under the trellis wires.

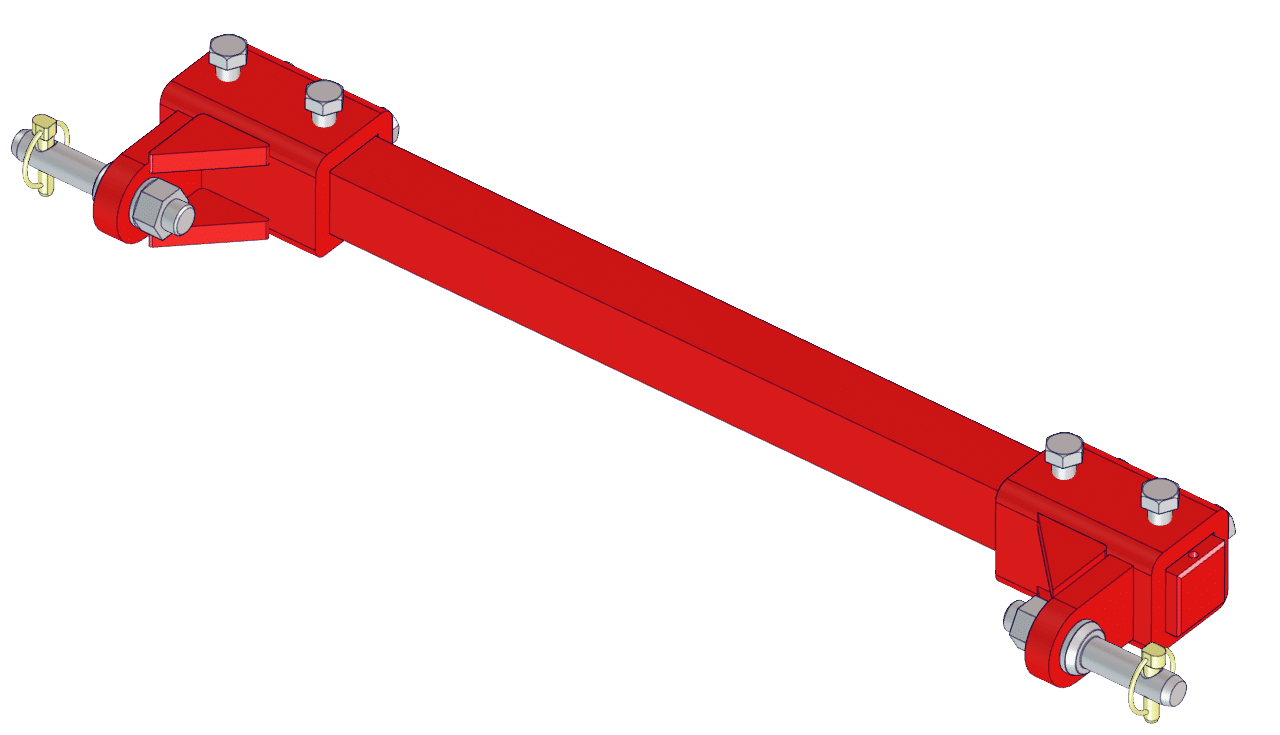

3-POINT MOUNTING OPTION

The 3-point attachment with its hitching balls mounted on bolts on a 50 mm bracket, which in turn slides into the sleeve attachment of a TAP. It enables the TAP-F PRO to be mounted on the front linkage of a vineyard or orchard tractor.

3-point mounting option for TAP-F
Spin extension option for TAP-F

SCREW EXTENSION OPTION

The extension allows a greater offset and permits the tractor to go into wider plantations while keeping the tractor centered in relation to the row.

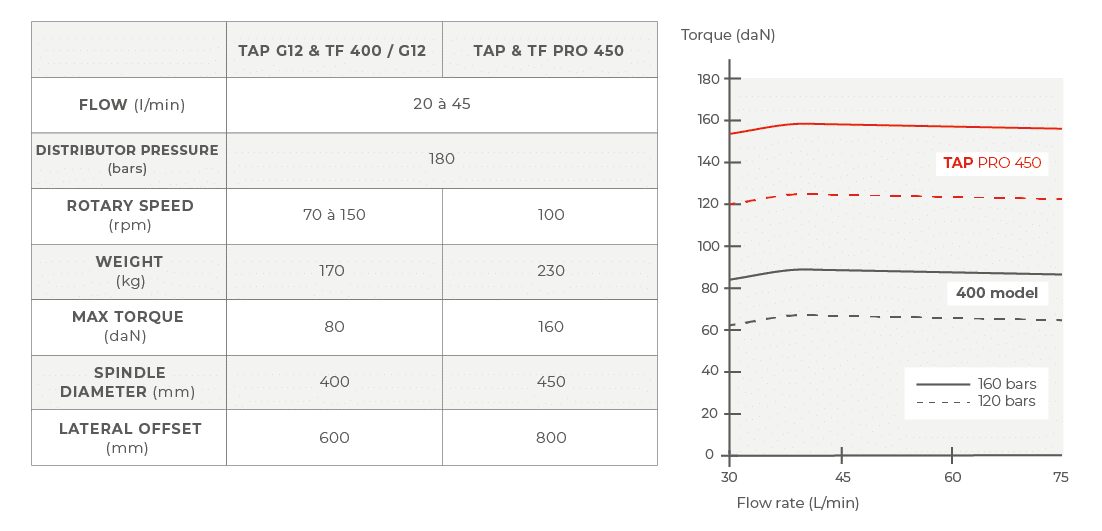

TECHNICAL CHARACTERISTICS

TAP G12 & TF 400 / G12 comparison table

COMMON OPTION TAP & TAC

Double cylinder kit for auger

Double cylinder kit

Removal cart for auger

removal cart

Screw ø 100 mm

Screw ø 100 mm

Key for screw moorings

Key for srew moorings

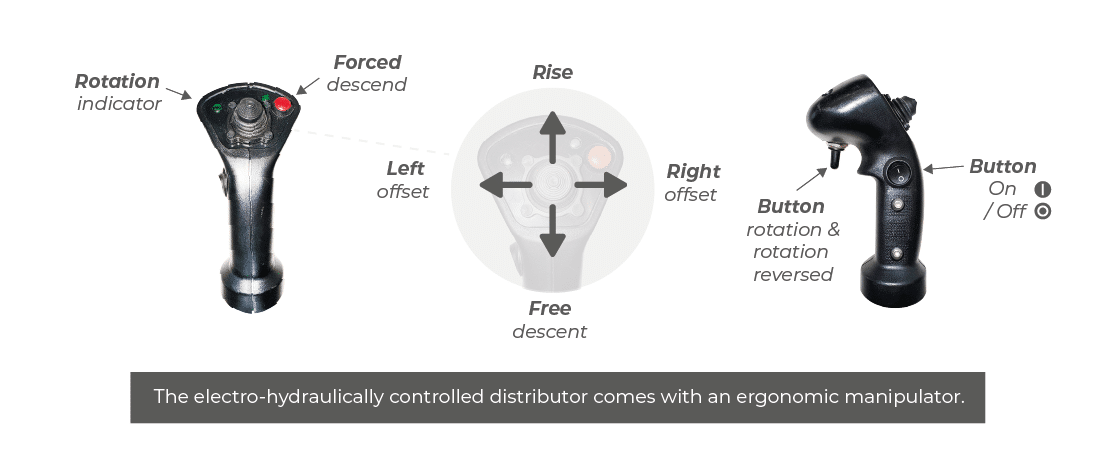

CONTROLS (common options for TAC and TAP & TF augers)

controls(common options for TAC and TAP & TF augers)

PHOTOS

Tarière TAP-F

Tarière TAP-F
