CUTMATIC

CUTMATIC is equipped with a vertical upright and a 350 mm or 400 mm long horizontal blade (500 mm in the flat blade version) for flat hoeing.

CUTMATIC system enables rapid soil cultivation, with the best possible proximity to the plant.

CONCEPTION

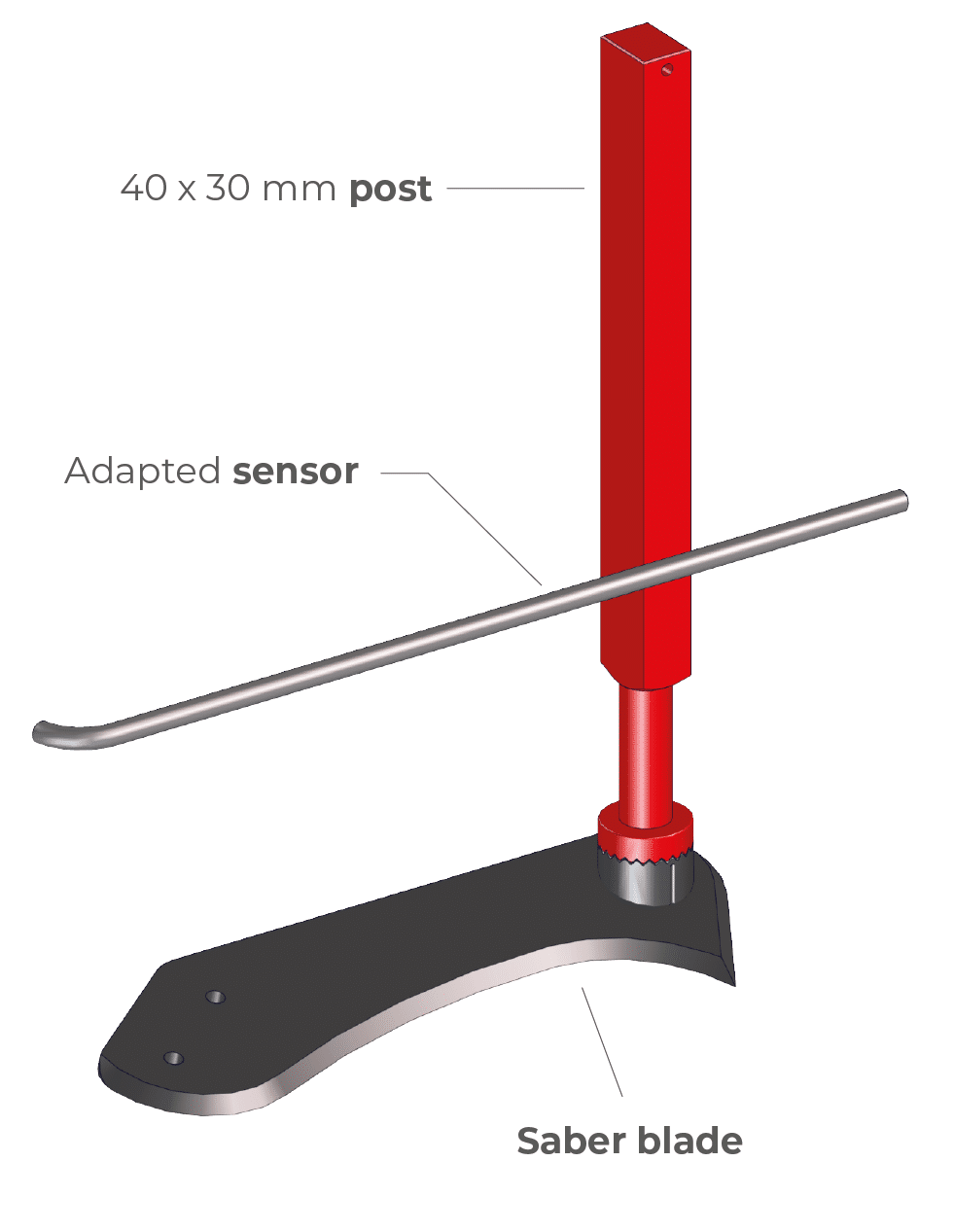

CUTMATIC CONCEPTION

ADVANTAGES – CUTMATIC

• Quick installation on the Servomotor

• Precise and efficient weeding

• Operating speed from 4 to 6 km/h

tool working position

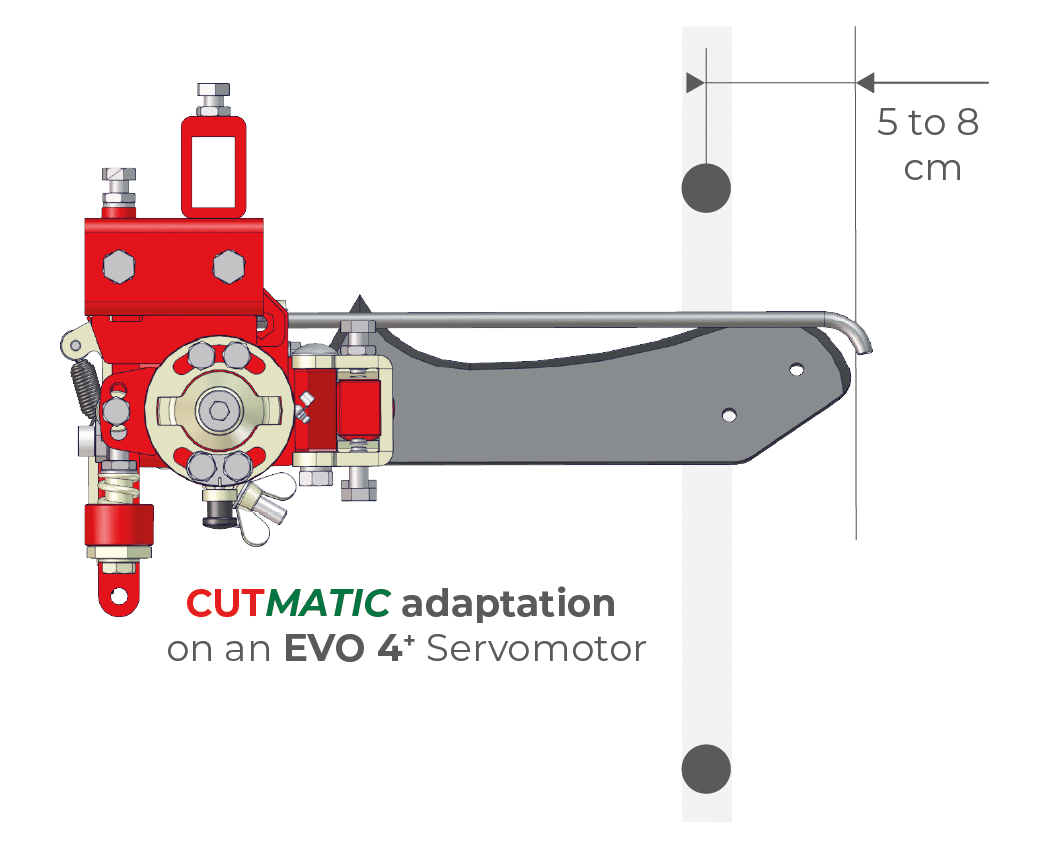

Working position of the CUTMATIC tool on EVO4 servomotor in relation to the planting row
Example of CUTMATIC assembly on EVO4 servomotor

Assembly example CUTMATIC
on EVO4 servomotor

A SPECIAL SENSOR

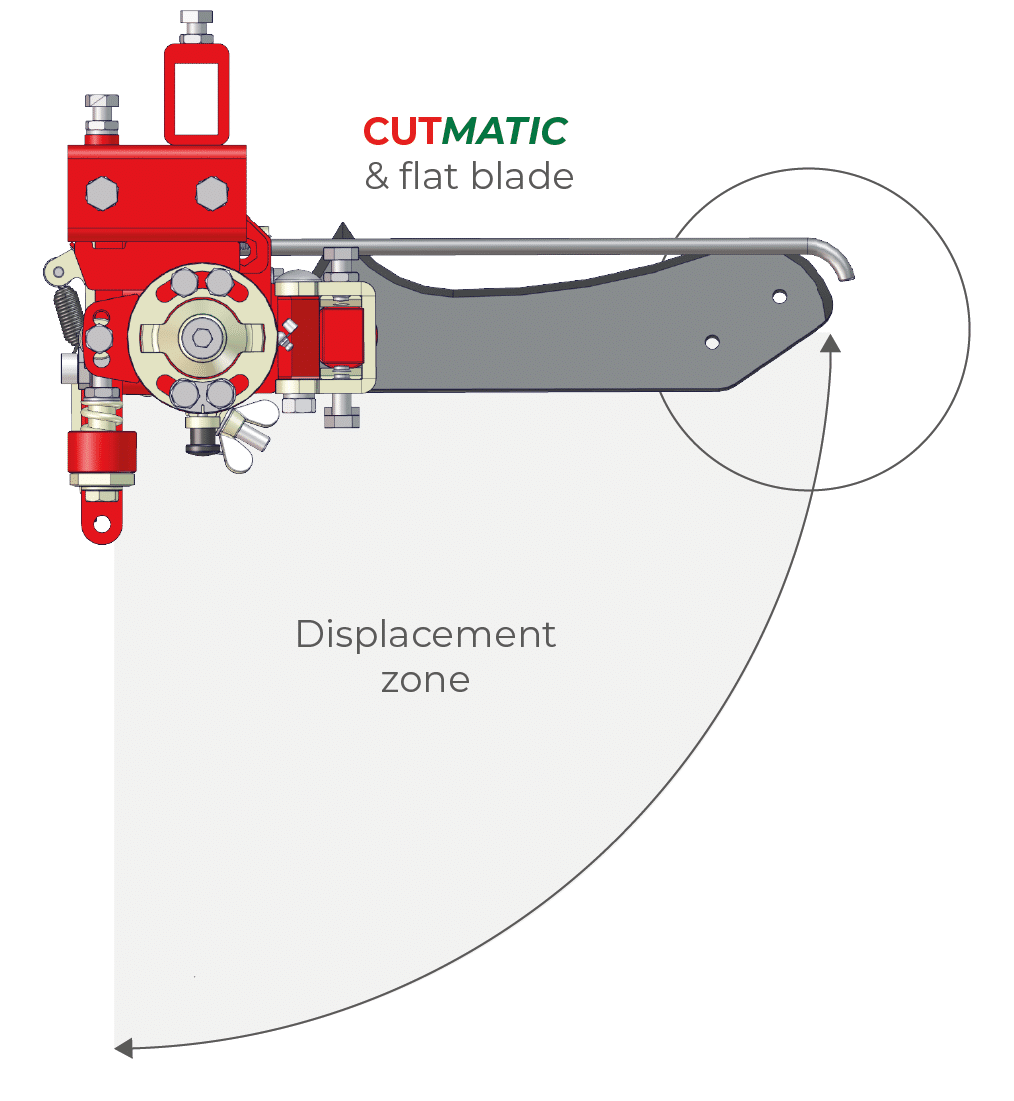

diagram with specific antenna on CUTMATIC with flat blade
Allows rapid tillage
Infos

CUTMATIC has a sensor with a specific shape and length which allows a very precise adjustment of the proximity to the plant, thus optimizing the hoeing as close as possible to the vine (or tree trunk.)

The CUTMATIC KIT
is offered with :

• A pair of Servomotors (a right and a left side)
• A pair of saber blades with post
• A pair of sensors
• A pair of angle brackets
• Two leg-mounts with a 300 mm plant hoe
• A hydraulic harness for a series connection

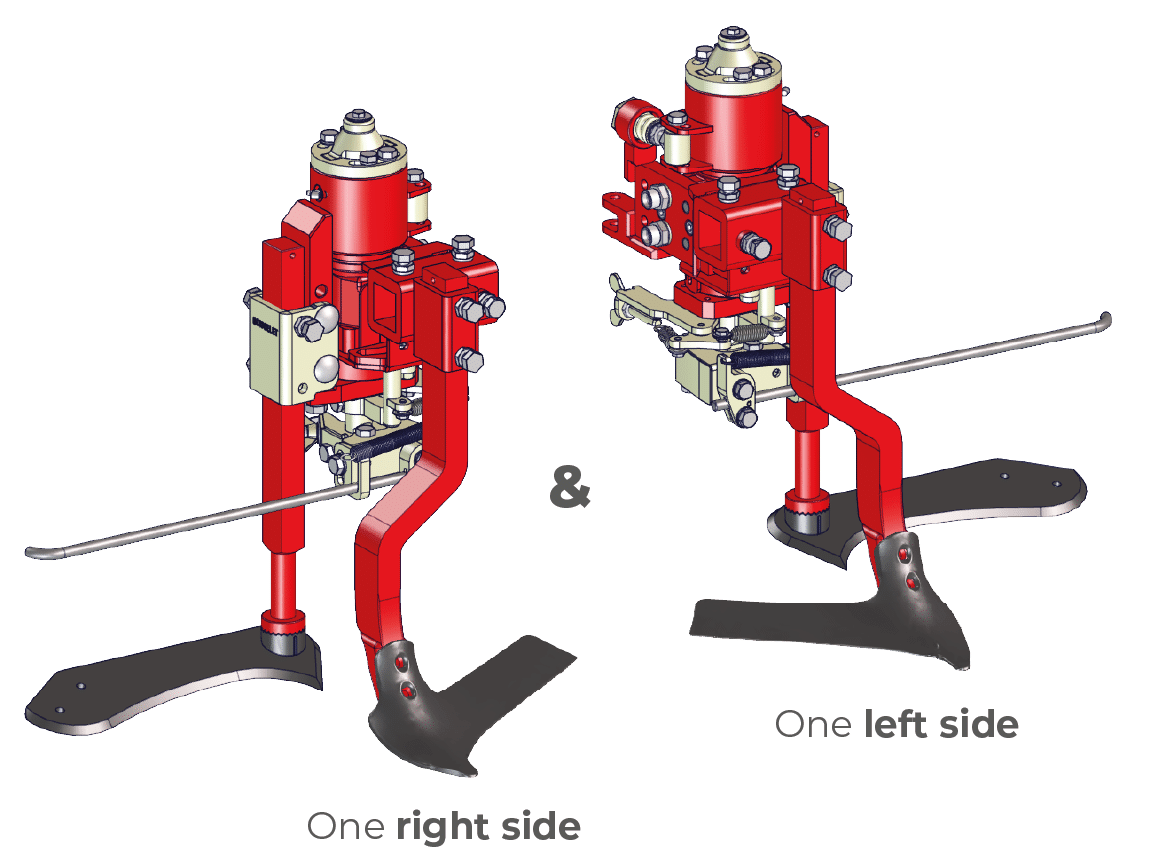

Description of the CUTMATIC KIT (one right side & one left side)

Did you know ?

The option of adding a welded or bolted moldboard onto the CUTMATIC blade allows for fine finishing work by bringing back the soil, from the furrow created by the inter-row blade, towards the ridge.

COMMON OPTIONS

Common options weld-on moldboard on flat blade

Welded plowshare
on flat blade

Common options for bolting onto saber blade

Bolt-on plowshare
on saber blade

Common moldboard option to bolt onto CUTMATIC blade

Bolt-on moldboards on CUTMATIC saber blade option
